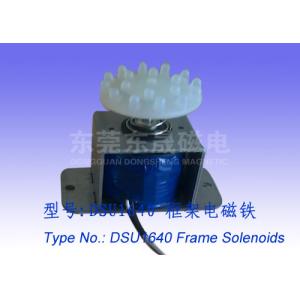

Linear Solenoids︱Open Frame Solenoids︱ Massage Solenoids︱Push type Open Frame Solenoids----DSU1640 ( IR-CUT ︱Solenoids valve︱Solenoid pumps︱Solenoid Coil)
1. Basic size: ￠16mm*L40mm
2. Service life: one million times ( energized: 2s, de-energized: 2s)
| No. | Name | Result |
| 1 | Operating Voltage | 12~220V,DC |
| 2 | Dielectric Strength | AC500V(50/60Hz) 1min |
| 3 | Temp. Rise | DC36V, below 85℃ |
| 4 | Holding Force | more than 4.5kg |
| 5 | Stroke | 0~12mm |
| 6 | Operating Noise | Empty load, lower than 60db |
| 7 | Environment Temp. | -10~180℃ |
| 8 | Weigth | 380g |
3. Feature:
1) U-frame design
2) Belongs to Open Frame Linear Solenoids
3) Operation: push
4) Strong impact force
5) Long service life
6) Fast heat dissipation
7) Simple installation and wiring
8) Action reliability
4. Application:
It is mainly used for fitness equipments and sport equipments.
